Itasca Cambria Class C MotorhomeSpecifications
|
Weights & Measures
|
|
27D |
27K |
30J |
| Length |
29'5" |
29'5" |
32'4" |
| Exterior Height1 |
10'4" |
10'4" |
10'3" |
| Exterior Width2 |
7'11" |
7'11' |
7'11" |
| Exterior Storage3 (cu. ft.) |
46.5 |
93 |
102 |
| Awning Length |
19' |
19' |
15' |
| Interior Height |
6'5" |
6'5" |
6'5" |
| Interior Width |
7'8" |
7'8" |
7'8" |
| Freshwater Tank Capacity4 (gal.) |
27 |
34 |
34 |
| Water Heater Capacity (gal.) |
6 |
6 |
6 |
| Optional Water Tank Capacity (gal.) |
Continuous |
Continuous |
Continuous |
| Holding Tank Capacity - Black/Gray4 (gal.) |
34/31 |
34/31 |
26/34 |
| LP Capacity5 (gal.) |
18 |
18 |
18 |
| Fuel Capacity (gal.) |
55 |
55 |
55 |
| GCWR6 (lbs.) |
22,000 |
22,000 |
22,000 |
| GVWR (lbs.) |
14,500 |
14,500 |
14,500 |
| GAWR - Front (lbs.) |
5,000 |
5,000 |
5,000 |
| GAWR - Rear (lbs.) |
9,600 |
9,600 |
9,600 |
| Wheelbase |
200" |
200" |
220" |
| Seating Capacity |
6 |
6 |
7 |
Key Features of the Cambria:
BenchMark® - Eliminate Pain in the You–Know–Where - Presenting the dinette, reconsidered: the BenchMark® full comfort dinette. In place of the customary slab of foam, its seats feature innerspring construction like that found in fine furniture. The result is exceptionally comfortable dining — and since the BenchMark converts instantly from a dinette to a comfortable bed — exceptionally comfortable sleeping as well. And unlike ordinary dinettes that use side doors or drawers for storage, the BenchMark seats flip up, providing easy access to the storage underneath (as well as 40% more storage than a similar dinette with side-drawer access). Dining, sleeping, or storing, the BenchMark full comfort dinette leaves you sitting pretty.
Infotainment Center with RV GPS - Infotainment is at your fingertips. - The Infotainment Center with Rand McNally RV GPS has it all: touch screen color monitor with split screen function, Rand McNally RV GPS safe & easy routing, amenities & tools, trips & content, turn-by-turn voice guidance, AM/FM radio with CD/DVD player, handheld remote, SiriusXM™ (subscription not included), compass, outside temperature, iPod®/iPhone® audio integration, Bluetooth™, and so much more.
MCD Roller Shades - Day or Night - The smooth-operating MCD solar/blackout roller shades set the ideal atmosphere in your coach, day or night. Besides providing ideal light and privacy, MCD solar/blackout roller shades offer upscale looks and performance and are easier to operate and clean than traditional pleated shades.
Nouveau™ by Ideal Rest® - Enjoy a Great Night’s Sleep, Rest Assured - The Ideal Rest Nouveau digital comfort control mattress makes sleeping a readily comfortable and restful experience. You can easily customize the firmness level that best suits your personal sleeping preference with his and her dual controls.
Experience the comfort of home while you’re away:
• Ultra-strength cover assists in moisture evaporation and management—eliminating bacterial growth for a healthier sleep environment.
• Ultra-supportive, self-adjusting sleep technology.
• Three compression flex zones provide high-performance body fit and support alignment for maximum pressure relief and comfort.
• Dual digital hand controls offer 50 scientifically accurate comfort set points.
• Specifically formulated comfort layer for added full-body contouring and progressive head-to-toe support.
• Virtually silent Freedom-Air™ inflator operation.
OnePlace® Systems Center - Control It All at OnePlace - The OnePlace® systems center allows you to monitor and control key systems from one convenient location. No more walking back and forth between the thermostat and generator, it’s all in one spot. The OnePlace panel features a streamlined appearance with a digital panel that is easy to read and operate. Stop the runaround with the OnePlace systems center.
Rest Easy® - Rest Easy® Multi-Position Lounge is a Couch, a Lounger and a Comfortable Bed - It looks like a normal couch. Yet closer inspection reveals an electric switch on the left arm that automatically converts it to a cozy lounger with a pull-out ottoman. Press the switch again and the lounger converts to a comfortable, contoured bed. Owners of select models will find the Rest Easy built right into the extendable sectional sofa for an even more relaxing experience. The Rest Easy is part of our continuing effort to build more home comfort into our motorhomes. So no matter what road you’re on, you’ll feel like you never left your favorite chair.
SiriusXM™ - Get Connected to SiriusXM™ Satellite Radio - SiriusXM satellite radio brings you over 140 commercial-free channels, full of live sports coverage, live traffic and weather reports, and the best in news, talk, and entertainment. High-altitude satellites ensure crystal-clear programming wherever your travels take you.
SmartSpace™ - Make the Most of Every Inch - The SmartSpace design philosophy encourages the use of innovative features to make the most efficient use of the available space in each coach. This design philosophy has led to the creation of features such as the BenchMark® full comfort dinette that has hidden storage compartments below the flip-up seats, full-extension drawer slides, and an extendable sectional sofa found in several of our coaches. From the Rest Easy multi-position lounge to the unique pull-out pantries, you’ll find a variety of SmartSpace features across our entire lineup of motorhomes.
Smart Storage™ – a Better Way to Store Your Gear - Smart Storage places bulky systems and tanks in improved configurations, leaving more room for basement storage. Exterior storage is also easy to access with innovative features such as a large trunk with multiple doors and sliding storage trays on select models. Other clever features you might find include a storage well with a drain plug and a compartment cover that converts into a picnic table.
StudioLoft™ - Turn Your Cab Into a Second Bedroom - The StudioLoft™ turns the cab of your coach into a second bedroom. It features a large bed that drops down from the ceiling for instant sleeping space. A curtain wraps around the bed for privacy. The cab seats fold back to sit beneath the bed. When the StudioLoft is tucked into the ceiling, the chairs raise up and rotate to become an integral part of the living area.
SuperStructure® - Creating Coaches of Lasting Beauty - Unlike some manufacturers, we use steel, not wood, to create a strong, durable cab substructure. We mount our windshields securely in steel with nonhardening sealants, just like an automobile. By using an advanced laser alignment system when mounting the cab to the chassis, we ensure a sturdy, square foundation.
TrueLevel™ - Always Accurate - Mirus™ detector cell technology ensures accurate freshwater and wastewater tank level readings. Mirus detector cells produce a micro-electrical field that detects liquid levels from outside the tank. No more probes to corrode or clog. Just true, accurate readings time after time.
Ultraleather™ by Ultrafabrics® - Your home away from home should feel like home. - Winnebago Industries cab seats, sofas, loungers, and more can be covered in premium, soft Ultraleather™ fabric. Ultraleather gives you the softness, comfort, and luxury that is more durable than leather and incredibly easy to clean. Made with proprietary technology that combines four material layers including PVC-free polycarbonates, it has been tested and proven to surpass competitive fabrics for integrity and durability. Plus, Ultraleather offers superior thermal comfort—creating a comfortable, neutral body temperature regardless of the setting. With Ultraleather, you can stay pleasantly protected from the bumps, spills, and scrapes of life on the road.
Valspar Resistovar Conversion Varnish - Exceptional Finish and Unsurpassed Protection in One. - Valspar Resistovar Conversion Varnish is specifically formulated to provide an exceptional finish that includes enhanced UV protection and superior scratch, chemical, and moisture resistance. Valspar’s Resistovar Conversion Varnish surpasses all KCMA performance standards.
|
Class C Motorhomes:

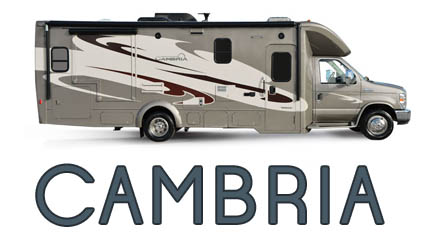

Itasca Cambria
Stop dreaming of full-scale luxury in a maneuverable Class C package, and start living it in the Cambria®. Three distinct floorplans are nicely appointed with features that make life more enjoyable, such as premium Ultraleather furniture, LED lighting, and available dual-pane Contour™ windows. An available Interior Upgrade Package takes the Cambria to the next level of comfort and leisure with the addition of MCD solar/blackout roller shades, a decorative galley backsplash, and more. Prefer to spend your time outdoors? The large exterior trunk with a convenient drain plug allows you to keep plenty of cold beverages on hand while you relax beneath the powered patio awning with LED lighting. You may even have to remind yourself that you aren’t dreaming; you’re just enjoying life in your new Cambria.
 View Available Cambria Motorhome Inventory
Floor Plans

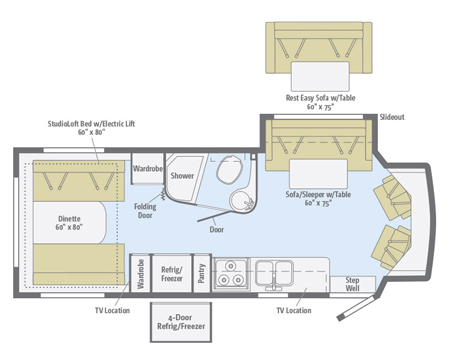

Model: 27D - Itasca Cambria

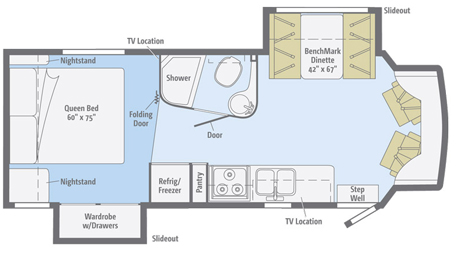

Model: 27K - Itasca Cambria
Model: 30J - Itasca Cambria
Model: Cambria - Standard Features
-
- Ford® E450 Chassis
-
305-hp 6.8L V10 SEFI Triton® engine
TorqShift™ 6-speed automatic transmission w/overdrive
120-amp. alternator
4-wheel ABS
Trailer Hitch6 5,000-lb. drawbar/350-lb. maximum vertical tongue weight and wiring w/7-pin connector
Stainless steel wheel liners
Rear auxiliary air springs
Optional Equipment
Hydraulic leveling jacks w/automatic controls
Stylized aluminum wheels
- Cab Conveniences
-
Cab seats hinged armrests, fixed lumbar support, and multi-adjustable slide/swivel/recline
Radio/Rearview Monitor System 6" LCD color touch screen, handheld remote, iPod®/MP3 input, rear color camera
Dual airbags
3-point seat belts
Chassis/house battery radio power switch
Power assist steering w/tilt wheel
Cruise control
12-volt powerpoints
Power door locks
Sunvisors
Power exterior mirrors w/defrost
Cab mat (rubber)
Optional Equipment
Infotainment Center with Rand McNally RV GPS 6" touch screen color monitor w/split screen function, Rand McNally RV GPS safe & easy routing, amenities & tools, trips & content, turn-by-turn voice guidance, AM/FM radio w/CD/DVD player, handheld remote, SiriusXM™ (subscription not included), iPod® and USB connections, Bluetooth™, color rearview camera
Sideview color camera system (cameras mounted to exterior mirrors)
SiriusXM™ receiver (subscription not included), remote, iPod interface connector
- Interior
-
Home Theater Sound System receiver, DVD player, amplifier, 5 speakers, subwoofer
28" HDTV (27D, 27K)
40" HDTV (30J)
USB/multi-outlet charging stations
LED lights
Satellite system ready
Video selection system
Front wraparound curtain
MCD blackout roller shades
Tinted windows
Soft vinyl ceilings
Amplified digital HDTV antenna
OnePlace® systems center
Powered roof vent (bath)
Powered ventilator roof vent (bedroom)
Roof vent (lounge)
Powered StudioLoft™ bed w/LED lights (rear of coach) (27D)
Flip-up footrests on dinette (27K, 30J)
Optional Equipment
Skylight w/sliding screen, pleated shade, and vent
Interior Upgrade Package galley backsplash, cab seat lounge cushions (2), dash and beverage tray appliqué, carpet floor mat in the cab, decorative wall mirror (27D, 27K), decorative picture (30J), Corian® sink and range covers, 2 sofa throw pillows, MCD solar/blackout roller shades (in select areas)
Winegard® automatic satellite TV antenna system
Winegard HD-ready in-motion satellite TV antenna system
Frameless, dual-pane windows
Deluxe powered ventilator fan w/rain cover, remote, and thermostat (bedroom)
- Galley
-
Polished Corian® countertops
Flip-up Corian countertop extension (30J)
2-door refrigerator/freezer
3-burner range top w/storage below
Microwave oven w/vented range fan (touch control)
Double-bowl stainless sink
Optional Equipment
Cold water filtration system
Stainless steel microwave/convection oven w/range fan (touch control)
4-door refrigerator/freezer w/icemaker (27D, 27K)
- Bath
-
Skylight
Flexible showerhead
Curved textured glass shower door (30J)
Retractable, self-cleaning screen shower door (27D, 27K)
Porcelain toilet w/foot pedal and sprayer
Water pump switch
Stainless steel sink
Towel bar (27D, 27K)
- Bedroom
-
Queen bed w/foam mattress, headboard, bedspread, pillows, and pillow shams (27K, 30J)
24" HDTV
Optional Equipment
Queen Ideal Rest® Nouveau digital control mattress w/remotes (27K, 30J)
- Exterior
-
Powered patio awning w/metal wrap w/LED lighting
Porch light w/interior switch
Stepwell light w/interior switch
Premium high-gloss skin
Rear mud flaps
Large rear storage compartment w/rotocast compartments w/drain plugs, cover/30" x 72" folding table
Fiberglass running boards w/wheel lips
Optional Equipment
Entertainment Center AM/FM stereo, CD/DVD player w/remote, audio and video jacks, 2 exterior speakers
- Heating & Cooling System
-
15,000 BTU high-efficiency air conditioner w/heat pump
30,000 BTU low-profile, ducted furnace
- Electrical System
-
Exterior AC duplex receptacle and TV jack
4,000-watt Cummins Onan® MicroQuiet™ gas generator
AC/DC load center, 45-amp. converter/charger
Power Cord Compartment 30-amp. power cord, shoreline/generator automatic changeover switch, cable TV input, portable satellite dish hookup
Coach battery disconnect system
Automatic dual-battery charge control
Auxiliary start circuit
2 deep-cycle, Group 31 Marine/RV batteries
1,000-watt DC/AC inverter
Optional Equipment
100-watt solar panel/battery charger w/controller, junction box, and plug for additional portable solar panel
- Plumbing System
-
Rear Trunk w/Service Center pressurized city water hookup w/diverter valve, exterior wash station w/lighted pump switch
Drainage valve compartment
Gravity water tank fill w/lockable door
10' sewer hose
6-gallon electric ignition, 110-volt/LP water heater w/Energy Management System
TrueLevel holding tank monitoring system
Winterization Package water heater bypass valve and siphon tube
Permanent-mount LP tank w/gauge
Heated holding tank compartment
On-demand water pump
Holding tank flushing system
Sewage pump (macerator) (27D, 27K)
Optional Equipment
Tankless water heater
- Safety
-
Child seat tether anchor (dinette) (27K, 30J)
LP, smoke, and carbon monoxide detectors
10 BC fire extinguisher
Ground fault interrupter
High-mount brake lamps
- Warranty7
-
12-month/15,000-mile basic limited warranty8
36-month/36,000-mile limited warranty on structure8
10-year limited parts-and-labor warranty on roof skin8
Interior
Biscotti Interior Finishes
Falling Star Interior Finishes
Monmument Interior Finishes
|
