VIN#A015728

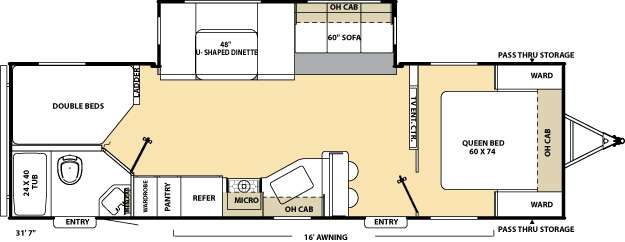

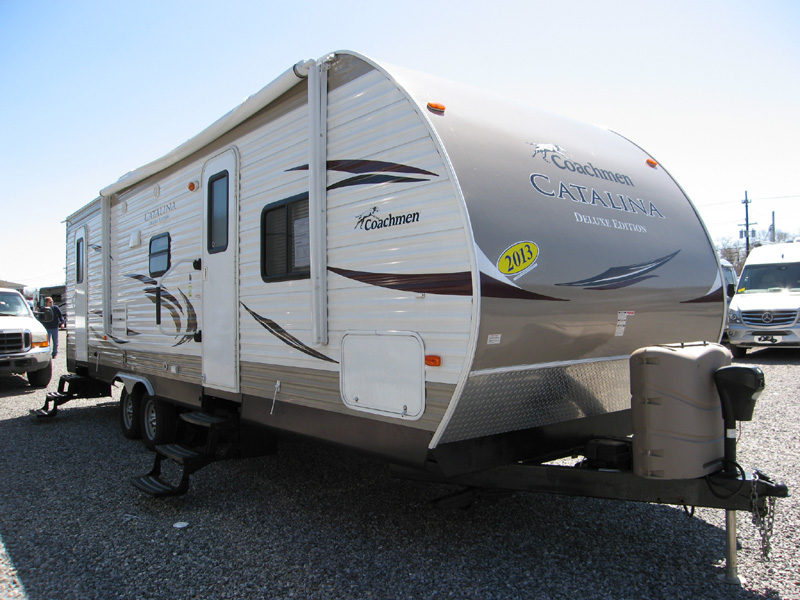

Model: 2013 Coachmen Catalina Deluxe 29DDS

Weights and Measures:
•Hitch Weight - 806 Lbs
Base Weight - 6345 Lbs
Gvwr - 7700 Lbs
Cargo Capacity - 1355 Lbs
Exterior Length - 31'7"
Exterior Height - 11'1"
Exterior Width - 96"
Fresh Water - 46 Gal.
Gray Water - 40 Gal.
Black Water - 30 Gal.
Awning Size - 18 Ft.

STANDARD FEATURES
Cambered structural steel I-Beam frame (With full width out riggers)
3/8” Fully decked walk-on roof
2” X 3” longitudinal floor joists on approximately 12” centers
Full extension ball bearing drawer guides
Residential in-floor ducted heat
81” Living room ceiling height
One-piece, seamless, rubber roof material with 12 year warranty
Easy-Trac electric slide out(s)
Wall studs on 16” centers
1/2” Plywood dinette, bed and bunk platforms
Roof rafters, constructed of residential-style tapered 5” trusses
5/8” Tongue & groove plywood floor decking
R-7 fiberglass insulation in sidewall, roof & floor
.024” Aluminum exterior skin with .030 skirt metal
Tile look linoleum flooring

STANDARD HEAT, POWER AND WATER EQUIPMENT
Roto-cast holding tanks
30K BTU auto-ignition furnace with wall thermostat
110V G.F.C.I. protected exterior receptacle
30-Amp electrical service w/deluxe 110v 45-amp power converter
12V demand water pump
Systems monitor panel
Hook-up for city water
Double 30-lb. propane gas bottles w/ regulator

STANDARD BATHROOM EQUIPMENT
Skylight above bath and shower
Shower curtain with curved shower track,
Neo-angle shower with glass doors - 25rks, 27fbck, 29rks, 30rls, 36qbds, 37dqbs
Towel ring (2) & toilet paper holder
Marine toilet with foot flush
Large sink in bathroom
Medicine cabinet with mirror
Bathroom exhaust fan

STANDARD KITCHEN EQUIPMENT
Single piece countertop with seamless edge
Stonecast residential style sink with extra deep 60/40 double bowl and single lever pull out sprayer faucet
Gas electric double door refer travel trailers, 18 cubic foot residential refer with ice maker on destination trailers
3-Burner range w/ 9,000 BTU Superburner™
Range hood w/light and exhaust fan
Access doors to the dinette booth
Glued & screwed cabinet construction
Easy-view extra large picture window at dinette
Large pedestal dinette table
Large u-dinette - some models
Silverware drawer

STANDARD BEDROOM EQUIPMENT
Premium mattress
Under-bed storage, bed lifts easily on 2 gas struts
Deluxe window treatments
Headboard
2 Shirt wardrobes
2 Night stands

STANDARD EXTERIOR EQUIPMENT
Dark tinted (g55) black framed windows w/safety glass
Swing arm entry assist handle at main entry
Radius entry steps
Superlube™ easy maintenance axles
Silver e-coat wheels
Painted bumper w/drain hose carrier and end caps
Radius-cornered fiberglass entrance door
Painted bottom radius skirting
Amber patio light w/inside switch
Baggage doors are lockable and radius-cornered
Grab handle at second entry (per floorplan)
Rain guttering, molded w/drip spouts
Easy-connect exterior LP port - easy access for
exterior LP grill or appliance hook-up (all models)
Polished aluminum fender skirts
Self adjusting brakes

STANDARD INTERIOR EQUIPMENT
Cognac maple cabinets with black accent trim
Jack knife convertible sofa with bolster cushions
Residential furniture
Crank-up digital TV antenna with signal booster
Cable hook-up with rg-6 coax cabling
Marine grade table leg and pedestal base
Valance & lambrequins window treatment
Large dinette tabletop
Night shades in living area

STANDARD SAFETY EQUIPMENT
Propane alarm
Breakaway switch
G55 rated safety glass windows
Dead-bolt lock on entrance door
Dual hitch safety chains
Smoke alarm
Multiple egress windows
Fire extinguisher
Carbon monoxide alarm
TRA certified green

CATALINA DELUXE CONSTRUCTION

A. Heated and Enclosed Underbelly

B. 2” X 3” Floor Joists Approx. 12” on Center

C. 5/8” 5-Ply Tongue & Groove Plywood Floor Decking

D. 2” Wall Studs 16” or Less on Center

E. Radius Entry Door

F. .024 Aluminum Siding

G. 5” Bowed Truss Roof Rafters

H. Seamless Rubber Roof (12 yr. Warranty)

I. R-7 Fiberglass Insulation Throughout

J. Full Pass Thru Storage

K. Black Framed Tinted Safety Glass Windows

L. 2-Tone Exterior Side Metal Accents

M. Residential Ducted Heat

N. SuperLube™ Axles with Radial Tires and E-Coat Rims

O. 3/8” Roof Decking (Full Walk-On Roof)

P. LP Bottle Cover w/ Easy Access

Q. 13.5K Ducted Roof A/C

R. Deluxe Residential Carpet

S. LP Quick-Connect Valve

T. Radius Entry Steps

U. Polished Aluminum Fender Skirts

V. NEW Fiberglass Radius Front End

Prices and Specs Subject to Change Canadian Specs May Differ From U.S.

THE ABOVE ITEMS ARE STANDARD ON THIS MODEL AT NO EXTRA CHARGE UNLESS REPLACED BY OPTIONAL EQUIPMENT.

All Above Specs Taken from 2013 Coachmen RV literature, some items may have been removed , changed or upgraded or not completely accurate.
