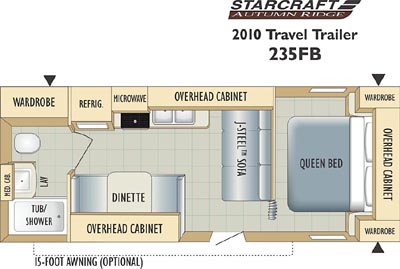

Model: 2010 Starcraft Autumn Ridge Series 235FB 26'6"

VIN# 1SABS0BM1A185E5722

Weights, Measurements & Capacities
6,000# GVWR (Gross Vehicle Weight Rating), 4,225# UVW (Unloaded Vehicle Weight), 500# Hitch Weight, 1,775# Cargo Carrying Capacity, 26'6" Exterior Length, 127" Exterior Height w/ A/C, 8' Body Width, 81" Interior Height, 37gal Fresh Water Capacity (Includes Water Heater), 32.5gal Grey Waste Water Capacity, 32.5gal Black Waste Water Capacity, ST205/75R 15C Radial Tire Size, Double 30lb Propane Tanks with Auto Regulator & Tank Cover, 2 Straight Axle(s) with All Wheel Electric Brakes, 2-5/16" Ball Coupler, 6 Sleeping Capacity.

Interior
Ball Bearing Drawer Guides 50-lb Capacity With Full Drawer Extension, Brown Sugar Raised Panel Doors and Drawers on Overhead Cabinetry, Brown Sugar Raised Panel on Refrigerator, Cable TV Hookup with RG6 Coax Cabling, Crank Up Digital TV Antenna with Signal Booster, J-Steel Convertible Sofa, Marine Grade Table Leg and Pedestal Base, Pleated Night Shades, Residential Furniture, Designed and Made by Starcraft, Roof Mounted Antenna For Radio.

Kitchen
3 Burner Range with 9,000 BTU Super Burner, Access Doors To The Dinette Booth, Acrylic Residential Style Sink, Brown Sugar Raised Panel Doors and Drawers On Overhead Cabinetry & Refrigerator, Extra Large Picture Window At Dinette, Large Pedestal Dinette Table, Mixing High Rise Faucet, Oversized Oven, Range Hood With Light and Exhaust Fan, Spice Rack, Built In Under Kitchen Sink.

Safety
Break-Away Switch, Dead Bolt Lock On Entrance Door, Dual Hitch Safety Chains, Egress Window, Fire Extinguisher, Propane/Carbon Monoxide Alarm, Safety Glass Windows, Smoke Alarm.

Utilities
120V GFCI Protected Exterior Receptacle, 12V Demand Water Pump, 12V Electrical System with Deluxe 110V 45 Amp Power Converter, 30Amp Power Cord, 6 Gal Gas Water Heater, ABS Holding Tanks, Auto Ignition Furnace with Wall Thermostat, Double 30# Propane Gas Bottles With Regulator, Hook-Up For City Water, In-Floor Ducted Heat, Outside Shower, Systems Monitor Panel, Water System Winterization Kit.

Construction
.024" Aluminum Exterior Skin, 1/2" Plywood Dinette, Bed and Bunk Platforms, 2"x3" Longitudinal Floor Joists On 16-18" Centers, 5/8" Tongue-And-Groove Plywood Main Floor Decking, 81" Living Room Ceiling Height, Fully Decked Roof with 3/8" Plywood, I-Class Cambered Structural Steel I-Beam Frame, One Piece Seamless Rubber Roof Material, Poly Flex One Piece Underbelly Covering, R-7 Fiberglass Insulation In Sidewall, Roof & Floor, Roof Rafters, Constructed Of Residential Style Tapered 4-1/2" Trusses, Wall Studs on 16" Centers.

Exterior
15" Radial Tires, Amber Patio Light With Inside Switch, Baggage Doors Are Lockable and Radius Cornered With Heavy Duty Grab Handle, Big Easy Entrance Step with 10" Deep Treads, Bumper With Drain Hose Carrier And End Caps, E-Z Lube Axles, Front Window With Flush Mounted Stone Guard, Galvanized Steel Wheel Wells (Insulated On Non-Slide Models), Painted Bottom Radius Skirting, Propane Gas Bottle Cover, Made of Molded ABS, Radius-Cornered Fiberglass Entrance Door With Screen Door, Rain Guttering Molded With Drip Spouts, Stabilizer Jacks (2 Pairs).

Bathroom
ABS Tub Surround, Bar & Towel Ring, Bathroom Exhaust Fan, Large Sink In Bathroom, Marine Toilet With Foot Flush, Medicine Cabinet With Mirror, Shower Curtain With Curved Shower Track, Toilet Paper Holder, Vinyl Flooring.

Bedroom
312 Coil Innerspring Mattress with 1" Padding, Accordion-Style Door, Quilted Bedspread, Shirt Wardrobe In Bedroom, Under-Bed Storage, Bed Lifts Easily On Gas Struts.

Prices and Specs Subject to Change Canadian Specs May Differ From U.S. All Above Specs Taken from 2010 Starcraft Autumn Ridge Model Sales Information, some items may have been removed , changed or upgraded or not completely accurate.
