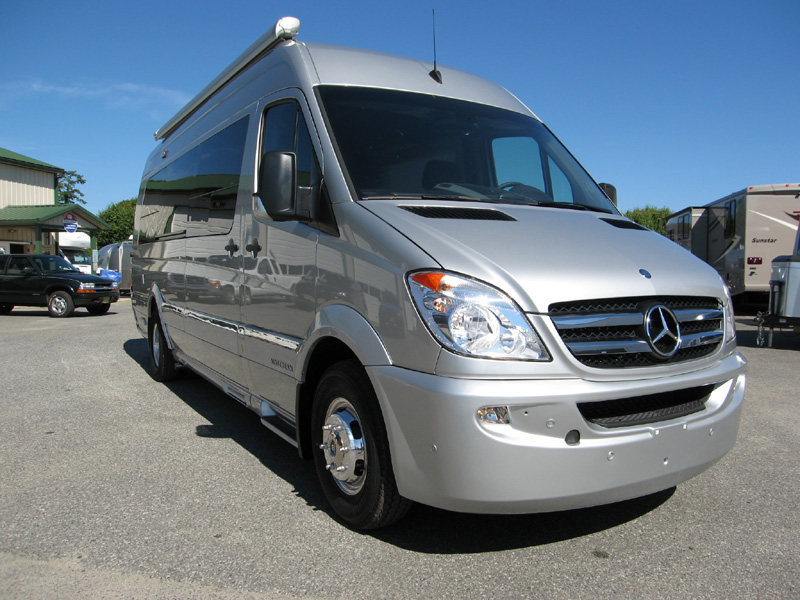

MODEL: 2014 - INTERSTATE 3500

CHASSIS
3500 Series Mercedes Sprinter Van Unibody Construction • Mercedes 3.0 Liter Turbo V-6 Diesel - 188 HP @3800 RMM/ 325ft/lb @ 140-2400 RPM • 5 Speed Automatic w/Overdrive Transmission • 11,030# GVWR • Call Colonial RV For the Best Price 800 265-9019 • 15,250# GCWR • Traveling Seating Capacity: 8 (Lounge), 3 (Twin), 8 (Extended Lounge) • 170” Wheelbase • Rear Window Defrosters • 50 State Emissions • 26.4 Gallon Fuel Tank • Radial Tires • 4 Wheel Disc Brakes • 220 Amp Alternator • Alcoa Aluminum Wheels w/Trim • Full Size Spare Tire w/Crank Down Winch • Maintenance Free Chassis Battery • Push Button Battery Assist • Vertical Weight Limit of Hitch- 750 lbs (Lounge & Twin), 500 lbs (Extended Lounge) • Typical Tow Capacity- 4,200 lbs to 6,200 lbs (Lounge & Twin), 4,200 lbs-5,000 lbs (Extended Lounge) • Hitch Receiver and Wiring • 74 1/4" Interior Head Room • 70" Interior Width At Floor • 23' 1" Exterior Length (Lounge & Twin) • 24'4" Exterior Length (Extended Lounge) • 79.7” Exterior Width • 9' 7" Exterior Height with Antenna • Locking Fuel Fill Door • Body Insulation • Rear Thru-Floor Storage, 29"x 12" x 12" (Extended Lounge) • Parktronic- Audio and Visual Front & Rear Parking Assist (Extended Lounge Only).

DRIVER COMPARTMENT
Driver & Passenger Front, Side and Thorax Air Bags • Ultraleather Heated Driver/Passenger Seats • Heated Windshield • Power Windows & Door Locks • In Dash Air Conditioning • Tilt and Telescopic Steering Wheel • Privacy Blackout Curtain (Wrap Around) • AM/FM/CD/DVD/Navigation, 7" Color with Touch Screen Controls, Remote Control, Built In Amplifier & Bluetooth, Pandora Internet Radio Connectivity, Sirius Satellite Radio Universal Tuner • Glove Box Mounted iPod/iPhone Connection Cable • Dash Trim Enhancement Kit • Floor Mats • Front & Rear Window Defrosters.

EXTERIOR
White Body (Standard Color) • Exterior Body Kit • Chrome Grill • Fog Lamps • Airstream Badging • Interstate Badging • 13' Armless Power Patio Awning • Tinted Glass (Except Cab Area) • 12V Power Entrance Step w/Step Out Warning Buzzer • Curbside Assist Handle.

INTERIOR
Flush Mount Cabinet Doors • Recessed Hardware • Radius Overhead Doors • Day/Night Shades • Interior Ceiling Aluminum Finish w/ Select Padded Areas • Vinyl Flooring.

• Light Camel Features: Asian Sand Cabinetry, High Gloss Laminate, Juta 39M Beau Flooring, Tan or Black Ultraleather w/Sculpted Design, Majestic Burl Dash Trim Kit & Accent Pillows.
• Onyx Features: Asian Night Cabinetry, High Gloss Laminate, Juta 39M Beau Flooring, Tan or Black Ultraleather w/Sculpted Design, Ash Burl Dash Trim Kit & Accent Pillows.

LOUNGE/BEDROOM
Power Rear Sofa (N/A Twin)- Ultraleather w/Memory Foam • Call Colonial RV For the Best Price 800 265-9019 • Ultraleather Captains Chair (2 on Lounge, 1 with Optional WD Wardrobe and None with Optional DWD Dual Wardrobe) • Overhead Lockers at Roadside & Curbside • Rear Overhead Lockers (N/A Twin) • Overhead Front Cabinet Storage W/Light • Corian Pedestal Mount Table • Jack-Knife Design CS & RS Sofas (N/A Twin)- Ultraleather w/Memory Foam • Adjustable CS Shelf Storage w/Clothes Rod (N/A Twin) • Adjustable Shelf CS Storage w/o Clothes Rod (Twin Only) • Full Height Roadside Wardrobe (Twin Only) • Memory Foam Pillow Top Twin Beds- 27" x 74" (Twin Only) • Bedspreads w/Reverse Shams (Twin Only) • Under Bed Storage (Twin Only) • Retractable Night Shelf (Twin Only).

GALLEY
Corian Countertop w/Backsplash • Sink w/Integrated Cover & Fold Down Faucet • Galley Flip Up Shelf (N/A Twin) • Cutlery Drawer.

BATHROOM
Expandable Wet Bath Includes Hinged Door & Shower Curtain • Toilet • Shower LED Lights (2) • Toilet Paper Holder • Towel Bar • Lavatory • Retractable Clothes Line • Mirror • 12V Exhaust Bath Fan.

APPLIANCES
2 Burner Cooktop w/ Glass Cover • 3.1 Cu. Ft. Compressor Style Refrigerator (12V/110V) W/Aluminum insert • 1.2 Cu. Ft. Convection Microwave W/ Half Time Oven Mode • 13,500 BTU Low Profile Air Conditioner w/Wall Thermostat • Omni Directional TV Antenna • Antenna Booster • Cable TV Hook Up • Smoke, Carbon Monoxide & LPG Detectors • Satellite Dish/Receiver Prewire • (2) 19" HD LED TV/DVD with HDMI Cable (1 on DWD Models) • 16,000 BTU Furnace • 6 Gallon LP/Electric Water Heater - XT Series (Equivalent Output of a 9 Gallon Water Heater) • Rearview Camera w/Rearview Mirror Monitor.

ELECTRICAL
LED Ceiling Lights w/Dimmer Control • Indirect LED Lighting • LED Directional Reading Lights (2) at Sofa Location (At Bed Locations On Twin Bed) • Probeless Tank Monitoring System • Maxx Air Roof Vent w/Built-in Thermostat (Exhaust Only) • 12V & 120V Exterior Outlets at Patio C.S. • 2.5KW Quiet Microlite LP Generator W/Remote Start • 30 Amp Service w/ Energy Management System & Detachable Power Cord • Exterior TV Hook-Up at Patio • LED Patio Light • Call Colonial RV For the Best Price 800 265-9019 • 45 Amp Converter Multi-Stage Charger/1000 Watt Inverter • Macerator Pump Discharge System • Variable Speed Water Pump • Solar Panel • 2 Deep Cycle AGM Maintenance Free Group 24 Auxiliary Batteries W/Electronic Disconnect.

SYSTEMS
18.9 Gallon LPG Tank With Remote Fill • 32 Gallon Fresh Water Tank w/ Drain • 27 Gallon Grey Water Tank • 15 Gallon Black Water W/Tank Flush • Heated Grey & Fresh Tanks - 12 Volt (Black tank in the Body) • Fire Extinguisher • Exterior Shower • City Water Hook-Up • Gravity Fresh Water Fill • Macerator Hose Reel w/Electric Retract Feature.

THE LISTED ITEMS ARE STANDARD ON THIS MODEL AT NO EXTRA CHARGE UNLESS REPLACED BY OPTIONAL EQUIPMENT.
